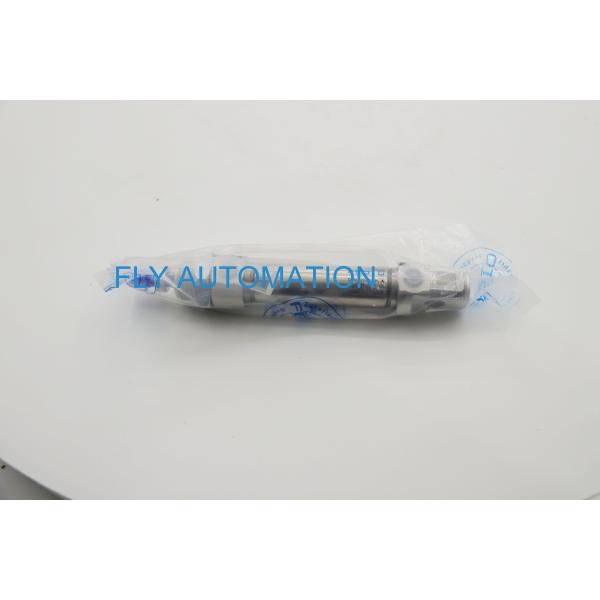

ISO cylinder DSNU-20-80-PPV-A 19238 FESTO Pneumatic Air Cylinders
About product
Piston rod thread:M8
Cushioning:Pneumatic cushioning, adjustable at both ends
Cushioning length:15 mm
Material piston rod:High-alloy stainless steel
Ambient temperature: -20°C-80°C
Technical Data
| Stroke |
80 mm |
| Piston diameter |
20 mm |
| Piston rod thread |
M8 |
| Cushioning |
Pneumatic cushioning, adjustable at both ends |
| Mounting position |
optional |
| Piston-rod end |
Male thread |
| Design |
Piston Piston rod Cylinder barrel |
| Mode of operation |
Double-acting |
| Corrosion resistance class CRC |
2 - Moderate corrosion stress |
| Cleanroom class |
Class 6 according to ISO 14644-1 |
| Ambient temperature |
-20°C-80°C |
| Cushioning length |
15 mm |
| Basic weight for 0 mm stroke |
186.8 g |
| Additional weight per 10 mm stroke |
7.2 g |
| Pneumatic connection |
G1/8 |
| Note on materials |
RoHS-compliant |
| Material cover |
Wrought aluminium alloy Colourless anodised |
| Material seals |
NBR TPE-U(PU) |
| Material piston rod |
High-alloy stainless steel |
| Material cylinder barrel |
High-alloy stainless steel |
Competitive Advantage
Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging, 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment
5) Loading inspection, and send loading photos before shipment.
There are so many models ,please contact with me.
